Chunlei 春雷 607
Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai
- Year
- 1967 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177811

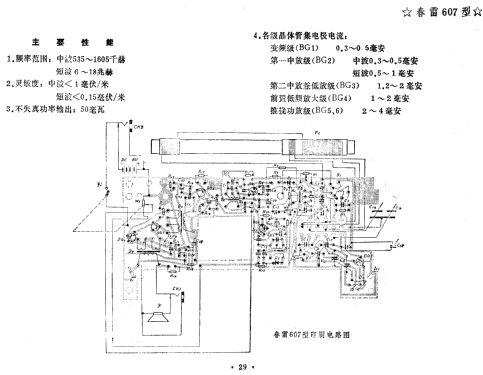

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s); Reflex
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

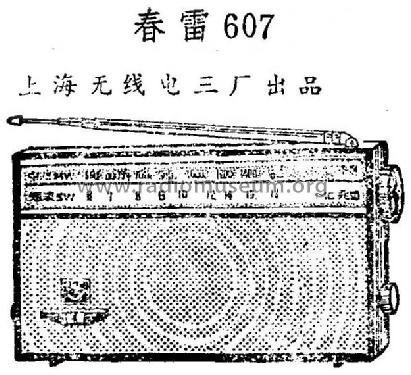

- Model: Chunlei 春雷 607 - Shanghai No.3 上海无线电三厂
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
- The radio model Chunlei 春雷 607 (Spring Thunder) receives broadcast 535 - 1605 kc and SW 6 - 18 mc. The IF was not given, but is normally 465 kc. Data: 0.5 mV 20 dB, 100 mW. The other source gives 50 mW and 1 mV.
- Mentioned in
- 03-Transistor Radio Circuit Manual 1981 August (1 of 5) (page 28.)
- Literature/Schematics (1)
- 02-Radio Manual unknown date, 380 pages (page 36 & 37.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
