• Country
• People's Republic of China

• Manufacturer / Brand
• Shanghai No.2 上海无线电二厂 Shanghai No.2 Radio Factory; Shanghai

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175683

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• 3AG1C 3AG1B 3AX31 3AX31B 3AX31B 2AP9

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 1.5 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Gongnongbing 工农兵 2P5 - Shanghai No.2 上海无线电二厂

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 110 x 80 x 35 mm / 4.3 x 3.1 x 1.4 inch

• Literature/Schematics (1)

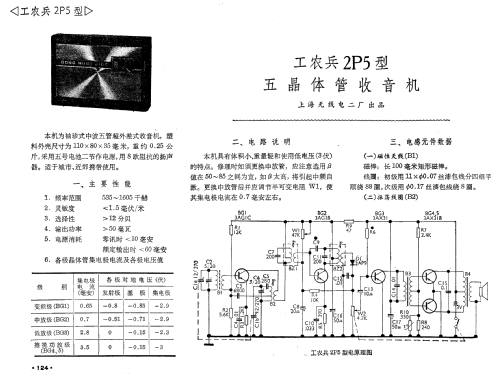

• 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 124.)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
