Hongdeng 红灯 2J2
Shanghai No.2 上海无线电二厂 Shanghai No.2 Radio Factory; Shanghai
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai No.2 上海无线电二厂 Shanghai No.2 Radio Factory; Shanghai
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 175921

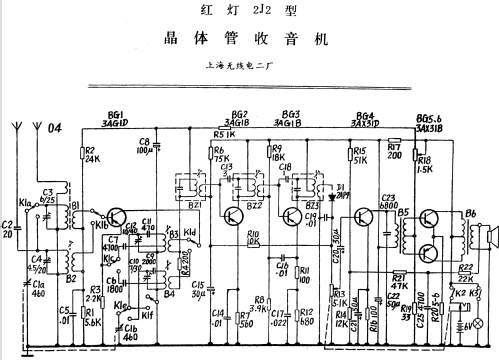

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Hongdeng 红灯 2J2 - Shanghai No.2 上海无线电二厂
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 370 x 213 x 189 mm / 14.6 x 8.4 x 7.4 inch
- Notes
- The model Hongdeng 红灯 2J2 has broadcast plus SW 4 to 12 MHz.
- Literature/Schematics (1)
- 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 182.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
