• Country
• People's Republic of China

• Manufacturer / Brand
• Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai

• Year
• 1960–1976 ??

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 120677

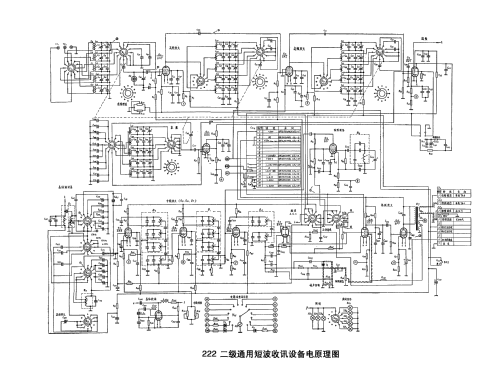

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6K7_China 6K7_China 6U1 6K4_China 6K4_China 6K4_China 6K4_China 6H2_China 6J1 6F2 6P1_China 6K4_China WL8P WY-1

• Main principle
• Superhet with RF-stage; ZF/IF 600 kHz; 2 AF stage(s)

• Tuned circuits
• 16 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Other, details in remarks or not known.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

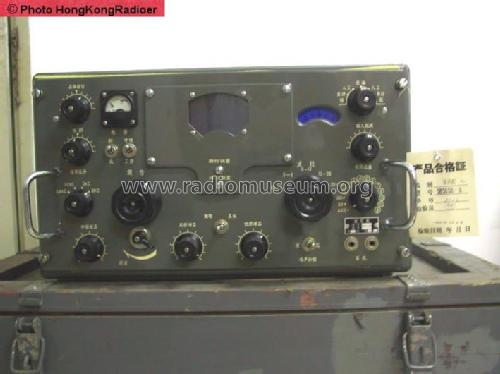

• Model: 222-1 - Shanghai No.3 上海无线电三厂

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 450 x 300 mm / 19.7 x 17.7 x 11.8 inch

• Notes
• Shortwave receiver, covers 1,5 to 30 MHz in 5 ranges, manufactured by Shanghai Third Radio Factory, different versions known, needs power supply unit for AC 100 - 240 V, equipped with chinese tube types: 6K7, 6K7, 6U1, 6K4, 6K4, 6K4, 6K4, 6H2, 6J1, 6F2, 6P1, 6K4, WL8P, WY-1.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
