- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176120
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 17
- Semiconductors
- 3AG1D 3AG1B 3AG1B 3AX31D 3AX31D 3AX31D 3AX31D 3AX31D 3AX31B 3AX31B 3AD6C 3AD18 3AD18 3AX81B 3AX31B 3AX81B 3AX31D 2AP9 2AP9 2AP9 2CW3 2AP9 2AP9
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 5 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Hongqi 红旗 100 - Shanghai No.3 上海无线电三厂
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 250 x 200 mm / 18.1 x 9.8 x 7.9 inch
- Notes
- The model Hongqi 红旗 100 has broadcast (as all at that time from 535 - 1605 kHz) and SW 3.9 - 12 MHz.

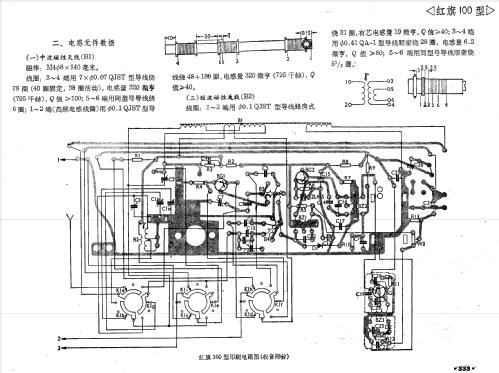

- Literature/Schematics (1)
- 01-Transistor Radio Manual 1972, 2nd Ed. 2nd Print 1983 (page 331-335.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 49 models, 42 with images and 43 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Shanghai No.3 上海无线电三厂 Shanghai No.3 Radio Factory: Shanghai
