Meiduo 美多 no number
Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176331

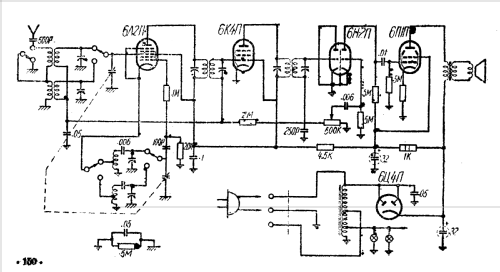

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Meiduo 美多 no number - Shanghai 上海无线电厂 Shanghai
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 350 x 170 x 165 mm / 13.8 x 6.7 x 6.5 inch
- Notes
- The Meiduo 美多 model hase broadband 550 - 1600 kHz (187 - 545 m) and SW 6- 18 MHz (16.6 - 50 m). Careful, the model has an auto transformer, mains on the chassis.
- Literature/Schematics (1)

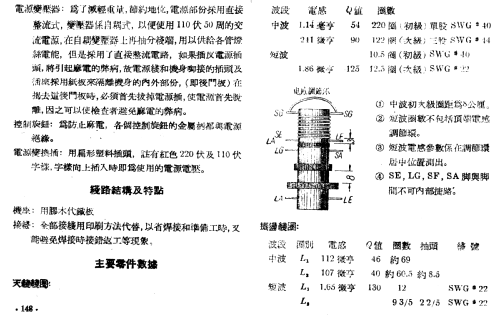

- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 147.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
