Meiduo 美多 Transistor Car Radio
Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Year
- 1958
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 176334

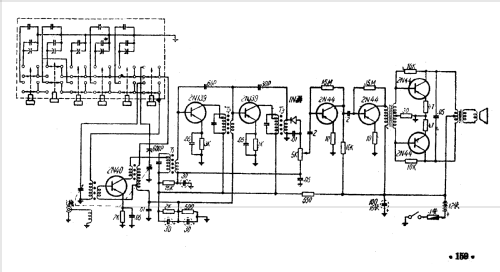

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org

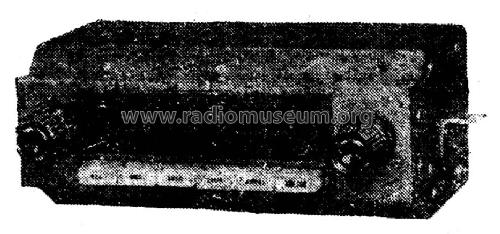

- Model: Meiduo 美多 Transistor Car Radio - Shanghai 上海无线电厂 Shanghai
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 260 x 110 x 165 mm / 10.2 x 4.3 x 6.5 inch
- Notes
- The model Meiduo 美多 Transistor Car Radio has broadband 550 - 1600 kHz (187 - 545 m). It is the first wholy made transistor car radio in China. It probably has been made in a very small number.
- Literature/Schematics (1)

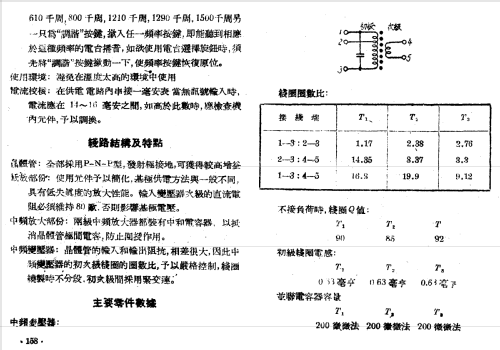

- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 157.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
