Gongli 公利 552-7 / (101, 103, 104)

Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)

Data
Forum
Pictures
Collections

  • Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 176307

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Gongli 公利 552-7 / - Shanghai 上海无线电厂 Shanghai
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes

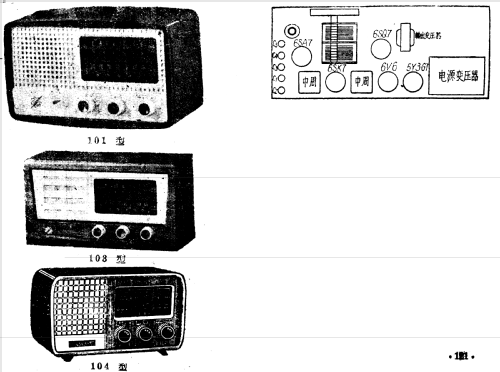

  • The model Gongli 公利 (engl. "public interest") 552-7 is also possible as model Xinshidai 新时代 (engl. "New Age") 101, 103 and 104. Reception is broadcast band 550 - 1600 kHz (187 - 545 m) and SW 3.9 - 12.1 MHz (24.8 - 76.9 m). The tubes are given as 6SA7 etc., but we believe they are Glass Tubular tubes (GT-Version). Please compare Gongli 552-7 with the equivalent Xinshidai 101, 103 and 104 before you upload pictures and check the other families below.

    The same applies for the following similar families: 552-6 for 101-A and model 552-8 shows the same documentation as 105, 106, 107, 108 and 109. See also 552-7A for 102. There are also 552 and 552-3, 552-4 and 552-5 for this schematic manual 1958/59. We presume that one of the brands is for export, but don't know yet which one.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
