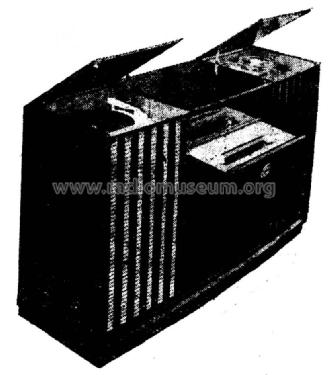

Shanghai 上海 532
Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Year
- 1957/1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176785
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 1.5 & 90 / sep. 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Shanghai 上海 532 - Shanghai 上海无线电厂 Shanghai
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- The model Shanghai 532 receives broadcast 550 - 1600 kHz and SW 6 - 18 MHz. There is a separate power supply for AC line power as a base which is a bit larger than the radio. It works with semi conductors.
- Literature/Schematics (1)
- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 103.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
