Shanghai 上海 471
Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176809
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Line / Batteries (any type) / 1.5 & 90 / 117; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Shanghai 上海 471 - Shanghai 上海无线电厂 Shanghai
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
- The model Shanghai 471 (from September 1954) is a portable table set and a portable. When on mains it has more AF power with the 50L6 tube. Otherwise it runs on the 3S4 tube as output stage. The Shanghai 471 receives broadcast 550 - 1600 kHz and SW 5.5 - 18.5 MHz. It can be supplied with US, GB or European tubes (1T4, W17 or DF91 as RF and IF stage for instance). 3 gang tuning condenser.
- Literature/Schematics (1)

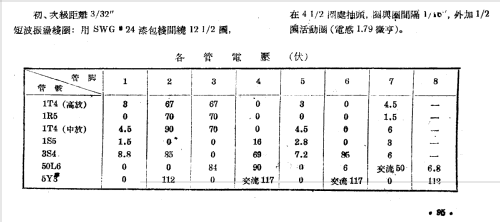

- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 90.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
