Shanghai 上海 159
Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Country
- People's Republic of China
- Manufacturer / Brand
- Shanghai 上海无线电厂 Shanghai Radio Factory, Shanghai (E)
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177068
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Shanghai 上海 159 - Shanghai 上海无线电厂 Shanghai
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 350 x 230 x 160 mm / 13.8 x 9.1 x 6.3 inch
- Notes
- The model Shanghai 159 receives broadcast 550 - 1630 kHz and SW 6 - 18 MHz. It has the same tube line up as 52-AA and the family Shanghai 157. We believe that 159 has a bakelite or plastic case but are not sure.
- Literature/Schematics (1)

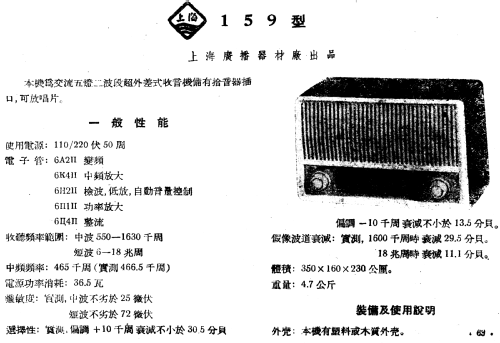

- 10-Broadcast Radio Manual, July 1959 (1958/59) (page 63.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
