• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1965

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 249815

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

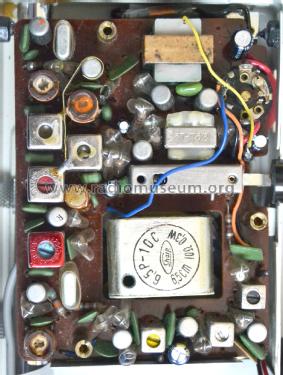

• Number of Transistors
• 10

• Semiconductors
• 2SA80 2SA82 2SA12 2SA12 2SA75 2SA77 2SA77 2SA80 2SA246

• Main principle
• Transceiver; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Dry Batteries / 8 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.15 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: 10 Transistor Sprechfunkgerät CBT-1D - Sharp; Osaka

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 95 x 175 x 42 mm / 3.7 x 6.9 x 1.7 inch

• Notes

• Kompaktes Handfunkgerät für das CB-Band - ein Kanal.

  In Deutschland für alle 4 Gruppen und Frequenzen zwischen 26,965 und 27,245 MHz lieferbar. Quarze steckbar.

  FTZ-Nummer: K457/64

  International für Frequenzen zwischen 26,970 und 27,255 MHz. Quarze hier fest verlötet.

• Net weight (2.2 lb = 1 kg)
• 0.585 kg / 1 lb 4.6 oz (1.289 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• DL-QTC 7/65

• Author
• Model page created by Michael Seiffert. See "Data change" for further contributors.
