• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1975 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 144284

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 310GNB4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 12P-30G - Sharp; Osaka

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 310 x 335 mm / 16.1 x 12.2 x 13.2 inch

• Notes

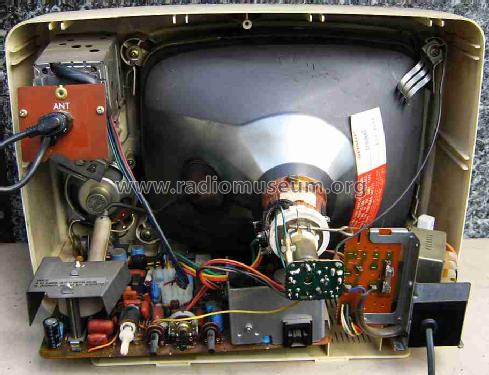

• S/W Fernsehgerät 12P-30G, VHF und UHF-Tuner, eingebaute Teleskopantenne, Einstellregler hinten (H-Hold/Brightness/Contrast und V-Hold), Gehäuse Weiss und Blende Schwarz, Stromversorgung extern mit 12 V DC möglich.

  Also see Australian VHF only version 12P-30X.

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
