• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 121332

• • alternative name: Hayakawa Electric Co.Ltd.

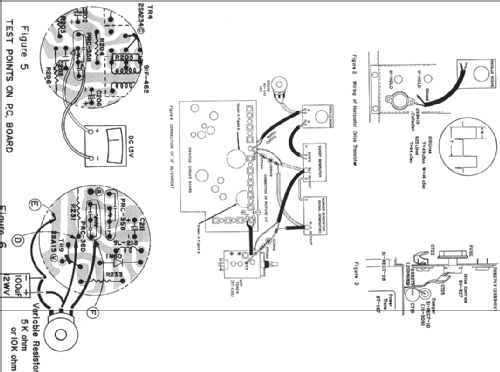

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 1DK27 1DK27 310ADB4 or 310AKB4

• Number of Transistors
• 34

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 110; 220; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 12T-Q-2 - Sharp; Osaka

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 300 x 340 x 340 mm / 11.8 x 13.4 x 13.4 inch

• Notes
• 28 cm 90° b/w CRT portable TV, 625/819 lines with VHF-/UHF multistandard tuner for french, belgium, luxembourg and CCIR B/G transmissions, built-in 105 cm telescopic and UHF dipole antenna, 1DK27 rectifier tubes.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Mentioned in
• FR "Television" No 162 March/April 1966

• Author
• Model page created by a member from A. See "Data change" for further contributors.
