• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174374

• • alternative name: Hayakawa Electric Co.Ltd.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 2 Band AC/DC Radio FXH-20 - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 155 x 80 mm / 9.4 x 6.1 x 3.1 inch

• Notes
• Frequenzbereich: AM 530...1650 kHz; FM 87,5...108 MHz. 5 Dioden.
  9-tlg. Teleskopantenne (45 cm). Ferritantenne (14 cm).
  Kopfhöreranschluß über Klinkenbuchse (3,5 mm).

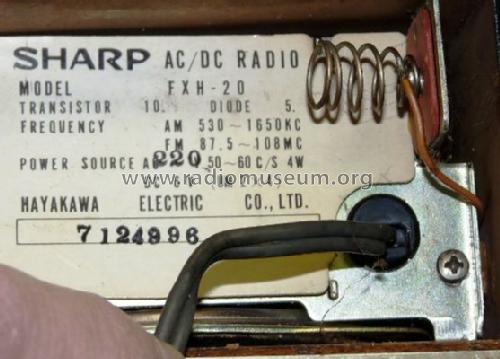

  Hayakawa Electric Co., LTD.

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
