• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162709

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.8 cm = 3.1 inch

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

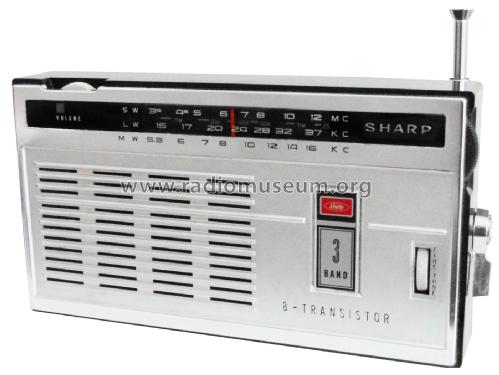

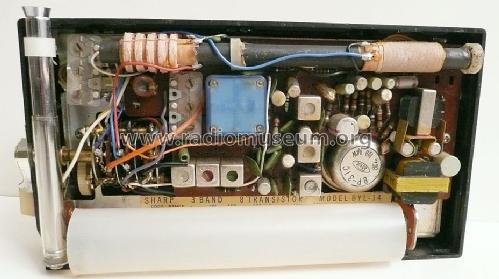

• Model: 3 Band 8-Transistor BYL-14 - Sharp; Osaka

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 205 x 114 x 48 mm / 8.1 x 4.5 x 1.9 inch

• Notes
• Reisegerät in schwarzer Ledertasche, Antenne ist ausgefahren 67cm und lässt sich nicht abknicken, mit Fine-Tune Poti, Stromversorgung mit 3 Babyzellen, Maß- & Gewichtsangaben ohne Tasche und ohne Batterien

• Net weight (2.2 lb = 1 kg)
• 0.715 kg / 1 lb 9.2 oz (1.575 lb)

• Author
• Model page created by Guido Höh. See "Data change" for further contributors.
