• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1971–1974

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 186484

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC644 or. 2SC828 2SC644 or. 2SC828 2SC828 2SC828 2SC538 2SC538 2SB481 2SB481 2SB481 2SB481

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Special Tape or Cassette-Format

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (undistorted)

• Material
• Various materials

• from Radiomuseum.org
• Model: 8 Track cartridge tape player RD-807X - Sharp; Osaka

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 174 x 69 x 175 mm / 6.9 x 2.7 x 6.9 inch

• Notes

• SHARP RD-807X : 8 Track, 2 channel stereo cartridge tape player.

  Output power: 2 x 3,5 W/ch @ 8Ω; 2 x 5 W/ch @ 4Ω.
  Frequency range: 100 - 8000 Hz.
  Speed: 9,5 cm/sec.
  Controls: volume, tone, balance and track selector.


• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 92.50 AUS $

• Mentioned in
• Mingay's Price Service (Feb 1971 to Feb 1974.)

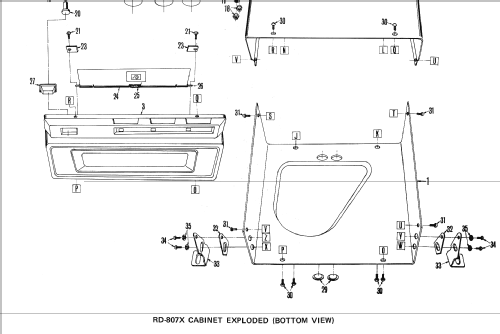

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gil Silva. See "Data change" for further contributors.
