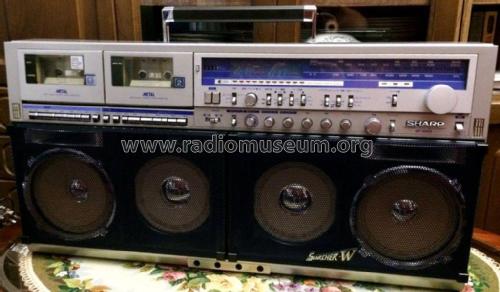

AM/FM stereo radio cassette GF-1000

Sharp; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1981
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 208667
    • alternative name: Hayakawa Electric Co.Ltd.

 Technical Specifications

  • Number of Transistors
  • 52
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / 10 x 1,5/ ? Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Power out
  • 30 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AM/FM stereo radio cassette GF-1000 - Sharp; Osaka
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 752 x 379 x 166 mm / 29.6 x 14.9 x 6.5 inch
  • Notes
  • AM/FM Stereo Radio-Tape Recorder. 4x 7,5 Watt (EIAJ).
    Double-Cassettendeck, APSS (Auto Program Search System).
    Normal, Metal, Chrome Tape Capability. 30-18000Hz (Metal).
    Speakers: 2x 160mm Woofer, 2x 160mm Sub-Woofer, 2x Horn Type.
    Power Source: DC 15V (UM/SUM-1, R-20, HP-2 or "D" battery x 10 or external DC supply).
    17 ICs, 1 FET, 1 SCR, 59 Diodes, 11 LEDs.
  • Net weight (2.2 lb = 1 kg)
  • 12.8 kg / 28 lb 3.1 oz (28.194 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
