AM/FM Stereo Tuner ST-510H
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 220880
-
- alternative name: Hayakawa Electric Co.Ltd.
Bild aus Sharp Service Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: AM/FM Stereo Tuner ST-510H - Sharp; Osaka
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 360 x 130 x 240 mm / 14.2 x 5.1 x 9.4 inch
- Notes
- 4 Band Stereo Tuner
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Mentioned in

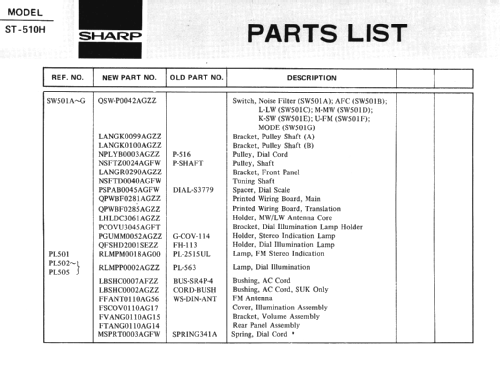

- Sharp Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
