Auto Radio AR-943
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1980 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 221518
-
- alternative name: Hayakawa Electric Co.Ltd.

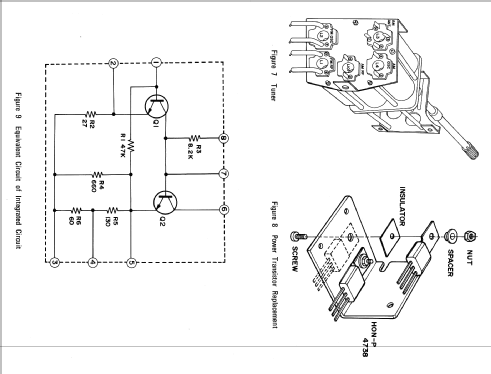

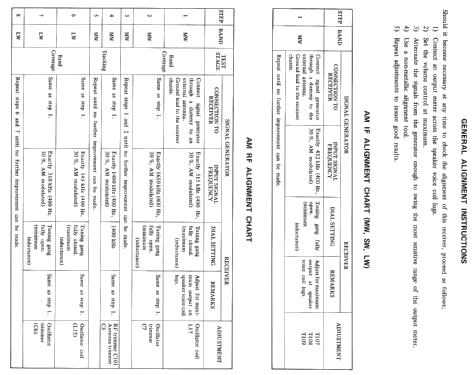

Bild aus Sharp Service Unterlagen

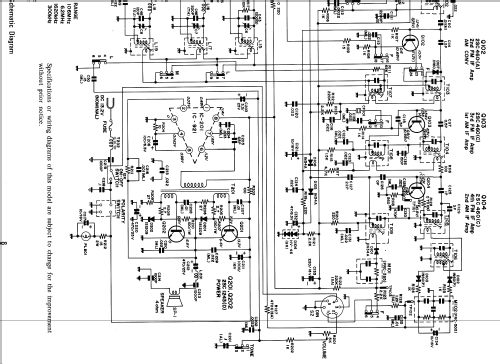

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios)
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 7 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Auto Radio AR-943 - Sharp; Osaka
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 160 x 50 x 106 mm / 6.3 x 2 x 4.2 inch
- Notes
- 5 Tasten L, M, K, UKW.und Tontaste, dazu passende Lautsprecher CP-27.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Mentioned in
- Sharp Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
