• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139592

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.08 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

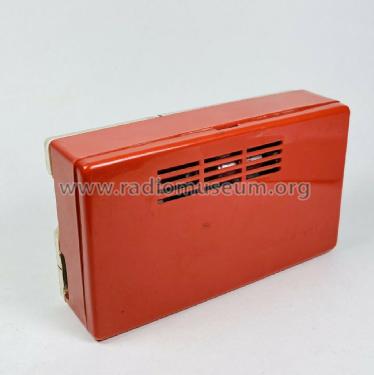

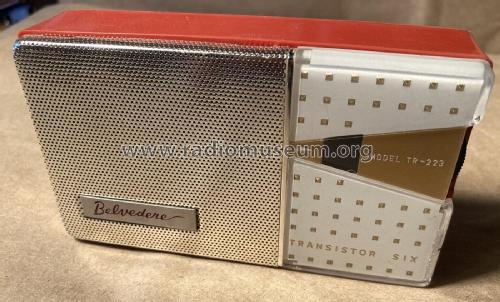

• Model: Belvedere Transistor Six TR-223 - Sharp; Osaka

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 64 x 112 x 0 mm / 2.5 x 4.4 x 0 inch

• Notes
• It uses the same plastic case as several other radios made by Sharp most notably the Seminole TR-221, Airline 1131, Continental TR-182 and Sharp TR-222. Belvedere TR-223 uses six 'TEN' brand (Kobe Kogyo) transistors to pull in local stations. It also uses a 'TEN' diode, a Sharp speaker and some other Sharp brand components.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
