• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1980 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183028

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Line / Batteries (any type) / 110; 220; 240 / 10 x 1.5; 15 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Both Sides Play Disc Stereo System VZ-2500H - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 710 x 410 x 190 mm / 28 x 16.1 x 7.5 inch

• Notes

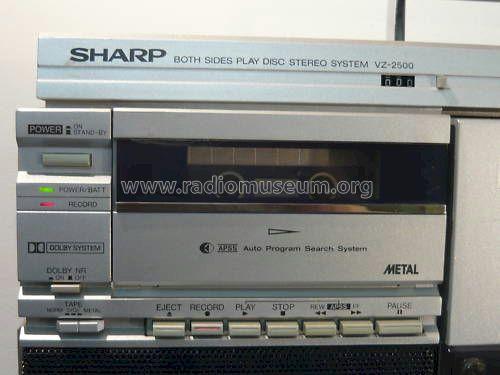

• Sharp VZ-2500H, Both Sides Play Disc Stereo System;
  Boombox-Ghettoblaster,
  Featuring:
  BSLT Both sides play
  linear tracking, microcomputer controlled disc record player (vertical playing), 33 & 45 RPM, Cass-deck:
  soft touch buttons, Dolby NR, APSS Auto Program Search System, Nor/CrO2/Metal bias/EQ,
  Tuner:
  FM-Stereo,

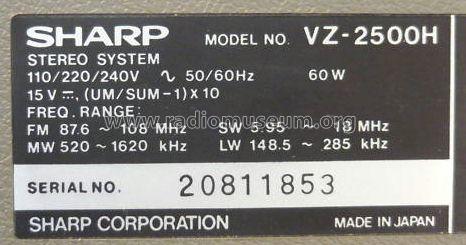

  AM: 520 - 1.620 kHz,
  FM: 87.6 - 108 MHz,
  SW: 5.95 - 18 MHz,
  LW: 148.5 - 285 kHz,
  Amp:
  balance, bass & treble, mic. volume, Aux in,
  ext. DC in, DIN AF I/O terminal, 60 W power consumption, made in Japan.

  For more details about the VZ-Series see here.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)
