• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158093

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA354 2SA353 2SA12 1N34A 2SB77 2SB77 2SB77

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.37 inch = 6 cm

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Make-Up Mirror Radio BPH-45 - Sharp; Osaka

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 11 x 11.5 x 0 inch / 279 x 292 x 0 mm

• Notes

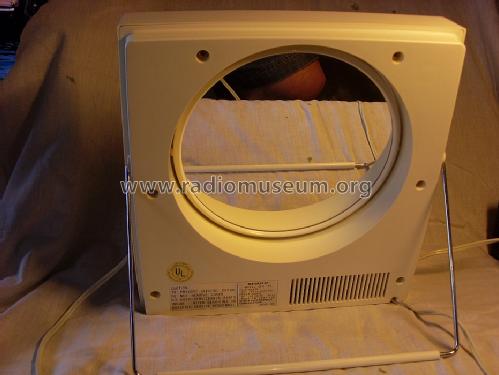

• AM Radio in the shape of a Make-Up Mirror with built-in lamp.
  Tuning Range: AM 540 - 1600 kHz.
  Power Consumption Radio 3 Watts, Lamp 75 Watts.

  Made in Japan 302 by Sharp Electronics Corporation.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
