BX-250 (Japan 302)
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1973–1976
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 213204
-
- alternative name: Hayakawa Electric Co.Ltd.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.125 inch = 7.9 cm
- Power out
- 0.63 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: BX-250 - Sharp; Osaka
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 6.5 x 4.1875 x 1.6875 inch / 165 x 106 x 43 mm
- Notes
-

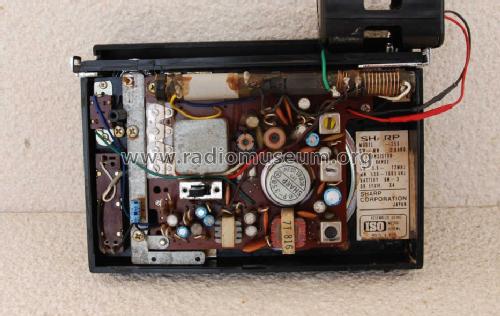

Sharp Model BX-250
An 8-transistor, 2-band portable radio. Automatic gain control; 3⅛" dynamic speaker; earphone jack. Power source, 4 x UM3 (AA) batteries. (FROM MINGAY'S PRICE SERVICE)
Frequency range:
MW: 530~1605 kHz

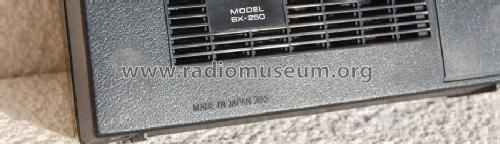

SW: 3.9~12.0 MHzMade in Japan 302
- Net weight (2.2 lb = 1 kg)
- 1.4 lb (1 lb 6.4 oz) / 0.636 kg
- Price in first year of sale
- 32.50 AUS $
- Source of data
- - - Data from my own collection
- Mentioned in
- Mingay's Price Service (Feb 1974 to Feb 1976.)
- Author
- Model page created by José Manuel Silvestre. See "Data change" for further contributors.
