• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1994 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 247692

• • alternative name: Hayakawa Electric Co.Ltd.

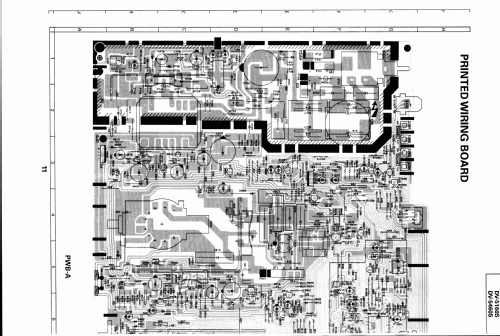

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220/240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 4 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Colour Television DV-5460S - Sharp; Osaka

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Notes

• PAL-Farbfernseher mit 21 Zoll (51cm) Bildröhre.

  Abstimmbereich 48,25-855,25MHz.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
