• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1973 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 123653

• • alternative name: Hayakawa Electric Co.Ltd.

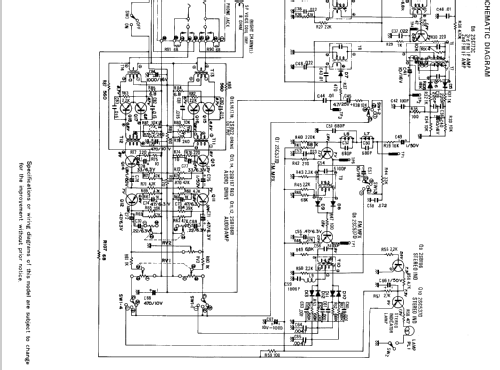

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage

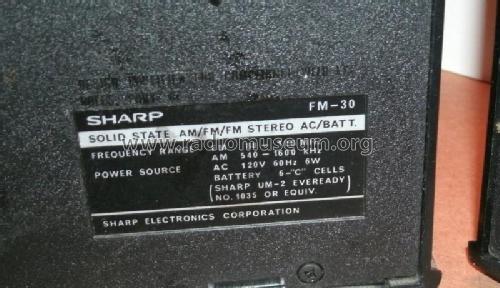

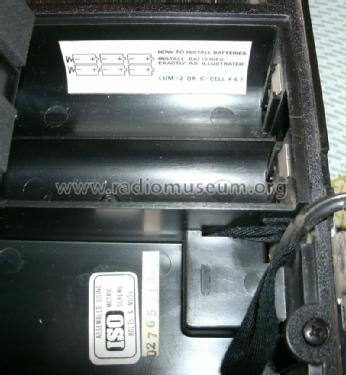

• Line / Batteries (any type) / 110 / 6 × 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org

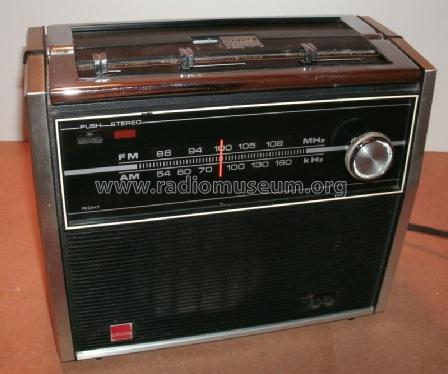

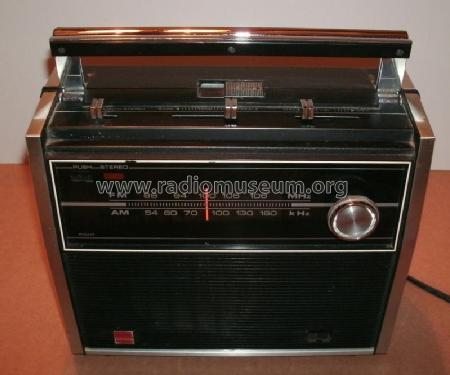

• Model: FM-30 - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

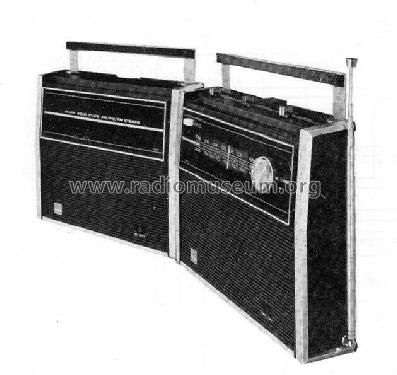

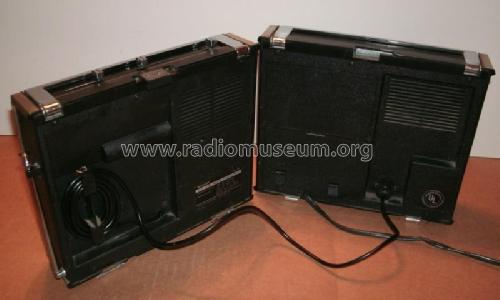

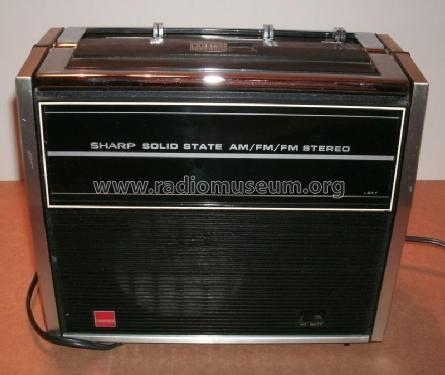

• Gerät in Stereo Ausführung 2. Lautsprecher abnehmbar.

• Mentioned in
• Original Sharp Unterlagen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
