• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154522

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220; 4 x 1,5 Volt

• Material
• Various materials

• from Radiomuseum.org

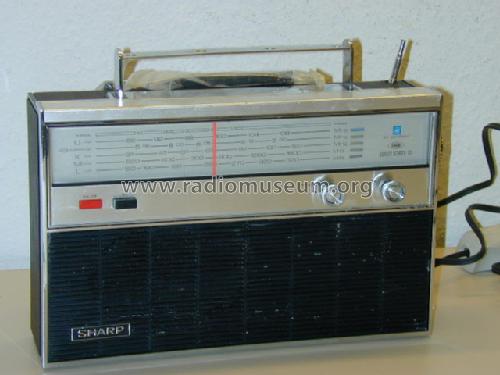

• Model: FV507 - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 180 x 72 mm / 11.8 x 7.1 x 2.8 inch

• Notes
• Kurzwelle 49 Meter Band gespreizt 5.95 - 6.2 MHz.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.
