• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125333

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SC535 2SC461 2SC460 2SC460 2SB75 2SB75 2SB77 2SB77

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.35 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

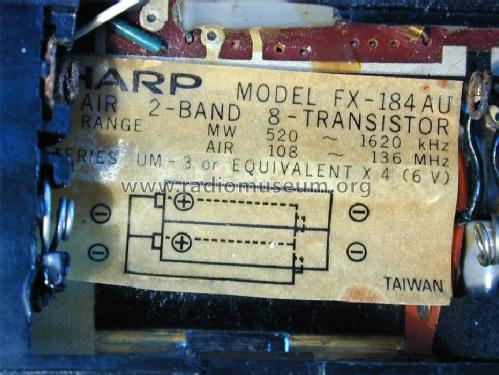

• Model: Air-MW 2 Band 8 Transistor FX-184AU - Sharp; Osaka

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 75 x 131 x 31 mm / 3 x 5.2 x 1.2 inch

• Notes

• Band / Wellen: AM / AIR (108-136 MHz).

  Made in Taiwan

• Net weight (2.2 lb = 1 kg)
• 0.250 kg / 0 lb 8.8 oz (0.551 lb)

• Mentioned in
• Original Sharp Service Unterlagen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
