FYS-25
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1966–1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 123588
-
- alternative name: Hayakawa Electric Co.Ltd.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 8 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / D: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.95 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

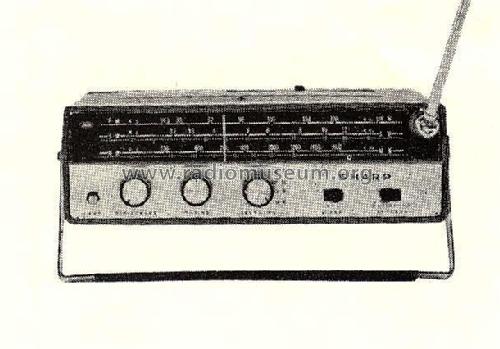

- Model: FYS-25 - Sharp; Osaka
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 250 x 165 x 80 mm / 9.8 x 6.5 x 3.1 inch
- Notes
-
Portable car radio supplied with cradle for use when in the car.
See also version with long-wave, Model FY-25.
- Net weight (2.2 lb = 1 kg)
- 1.2 kg / 2 lb 10.3 oz (2.643 lb)
- Price in first year of sale
- 111.30 AUS $
- Mentioned in
- Mingay's Price Service (Aug 1966 to Feb 1969.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Original Sharp Service Unterlagen)
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
