• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145439

• • alternative name: Hayakawa Electric Co.Ltd.

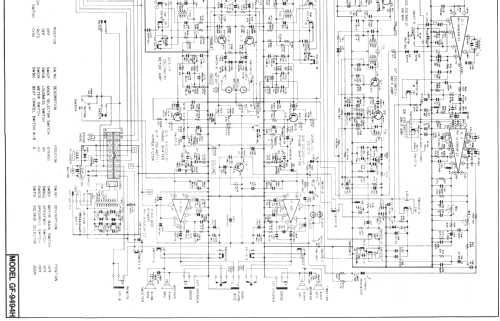

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220; 240 / 10 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers / Ø 18 cm = 7.1 inch

• Power out
• 13 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: GF-9494H - Sharp; Osaka

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 568 x 310 x 142 mm / 22.4 x 12.2 x 5.6 inch

• Notes
• 2 x Tiefton-LS 18 0hm. 2 x Hochton-LS 3 0hm

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• Author
• Model page created by Thomas Müller. See "Data change" for further contributors.
