Stereo Radio - Tape Recorder "The Searcher" GF-9595H GF-9595E

Sharp; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 116575
    • alternative name: Hayakawa Electric Co.Ltd.

 Technical Specifications

  • Number of Transistors
  • 53
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 450/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 110; 220; 240 / UM-1: 10 x 1.5 & UM-3: 3 & 1.5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Radio - Tape Recorder "The Searcher" GF-9595H GF-9595E - Sharp; Osaka
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 542 x 285 x 135 mm / 21.3 x 11.2 x 5.3 inch
  • Notes

  • Stereo radio/cassette recorder.  LED VU-Meter. Two cone type bass speakers (16 cm) and 2 horn type tweeters.

    Wave ranges:

    • FM 87,5 - 108 MHz
    • LW 155 - 281 kHz
    • MW 531 - 1602 kHz

    Output: 2 x 7 W on AC / 2 x 6 W on DC (GF-9595H) or 2 x 11 W on AC / 2 x 6 W on DC with 10% distortion (GF-9595E). Tape wow and flutter: 0.17% (DIN 45511 for GF-9595H, CCIR for GF-9595E).

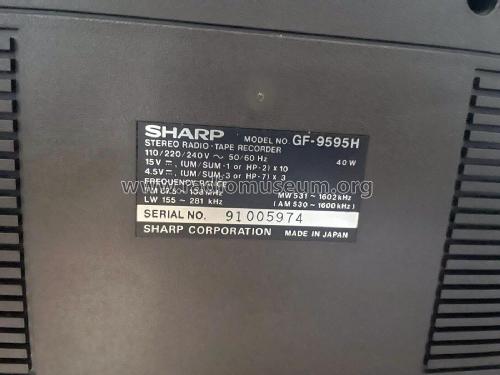

    Power sources: AC 110, 220 or 240 V at 50 or 60 Hz / DC 15 V with 10 x R20 batteries or other external DC source / 3 x 1.5 V R6 batteries for microprocessor.

    1 LSI, 20 IC, 53 transistors, 3 FET, 104 diodes, 13 LEDs.

  • Net weight (2.2 lb = 1 kg)
  • 8.4 kg / 18 lb 8 oz (18.502 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Wilfried Winter. See "Data change" for further contributors.
