JC-192
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1990 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 259991
-
- alternative name: Hayakawa Electric Co.Ltd.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Batteries / addl. power jack / AA: 2 x 1,5 / DC 3 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: JC-192 - Sharp; Osaka
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 87 x 138.5 x 36.5 mm / 3.4 x 5.5 x 1.4 inch
- Net weight (2.2 lb = 1 kg)
- 0.265 kg / 0 lb 9.3 oz (0.584 lb)
- Price in first year of sale
- 11,150.00 GRD

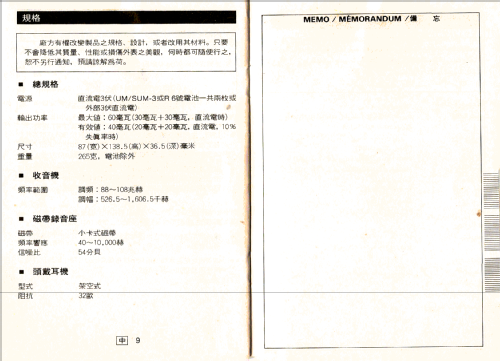

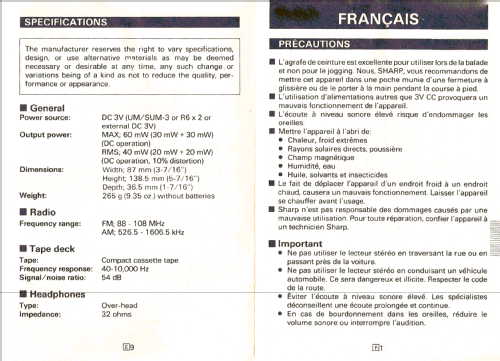

- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by Adamantios Nikolaidis Wentzelopoulos. See "Data change" for further contributors.
