Both Sides Play Disc Stereo System VZ-2000 H Metal

Sharp; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1981/1982 ?
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 120231
    • alternative name: Hayakawa Electric Co.Ltd.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Line / Batteries (any type) / 110; 220; 240 or Batt or 15 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Both Sides Play Disc Stereo System VZ-2000 H Metal - Sharp; Osaka
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 730 x 470 x 200 mm / 28.7 x 18.5 x 7.9 inch
  • Notes

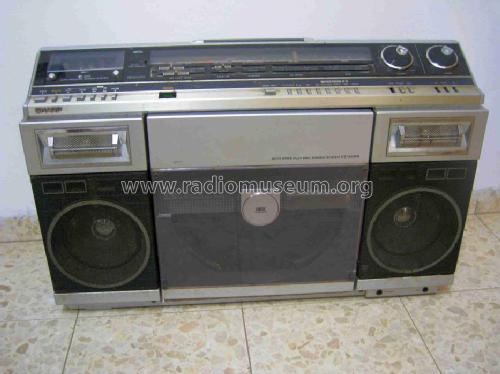

  • Sharp VZ-2000 H, a big Boombox (Ghettoblaster), a portable stereo system: Both sides play disc stereo system with FM/MW/LW radio receiver. Cassette deck with Dolbynoise reduction. Record player with automatic repeat of one or both sides of up to 12" vinyl records (33/45 rpm). 2 linear tracking tonearms. Microcomputer controlled and fully automatic. 2-way speaker system. Easy-touch controls, auto programme pause system, and metal tape capability. 10 batteries EC no. R20 needed or 110/127/220/240V 50/60Hz or 15V DC. The turntable was fitted with a Sharp 118 phono cartridge and a Sharp STY-118 needle stylus. Later models use STY-123 = GR#998 = AT-91.

    See some versions: The VZ Series (VZ-V2 for Japan, VZ-V3) are Sharp VZ2000, Sharp VZ-2000Z, Sharp VZ-2000XA, Sharp VZ2500 H (VZ-V20 R from 1982) using STY-130 = GR#1035, Sharp VZ3000 (H, HB), VZ3500 (HB) all with similarity and a VZ1500.

    Das Kombinationsgerät VZ-2000H hat wie viele Erzeugnisse von Sharp die Marke oder Zusatzbezeichnung "Metal". VZ-2000H ist eine Kombination Plattenspieler, Kassettenrecorder und Radio. BSLT (Both Sides Play Linear Tracking) System. Schallplatten stehen senkrecht und werden beidseitig, ohne die Platte zu wenden, abgespielt. 33/45 upm. Aufschrift: Under License of Staar SA Belgium". Wechselstromnetz, 15 V Gleichstrom oder 10 x 1,5-Volt-"Batterien" möglich.

  • Net weight (2.2 lb = 1 kg)
  • 16.3 kg / 35 lb 14.4 oz (35.903 lb)
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
