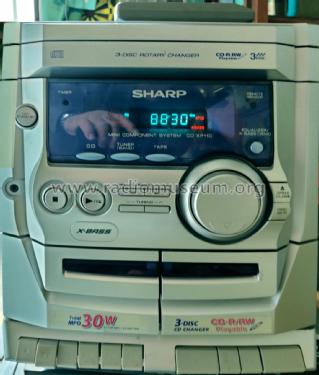

Mini Component System CD-XP110H

• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 2000 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345461

• • alternative name: Hayakawa Electric Co.Ltd.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (30 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Mini Component System CD-XP110H - Sharp; Osaka

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 270 x 305 x 343 mm / 10.6 x 12 x 13.5 inch

• Notes

• Tuner with CD + Cassette Recoder.

  Made in China

• Net weight (2.2 lb = 1 kg)
• 5.7 kg / 12 lb 8.9 oz (12.555 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
