Optonica SO-9100H
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1981
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 145190
-
- alternative name: Hayakawa Electric Co.Ltd.
Original prospekt in 1981.

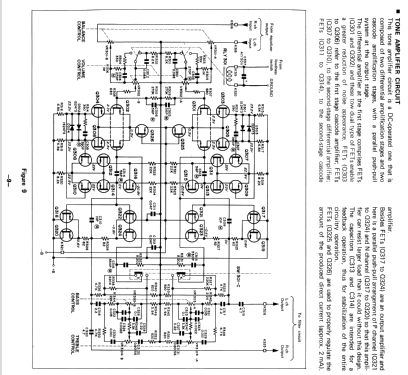

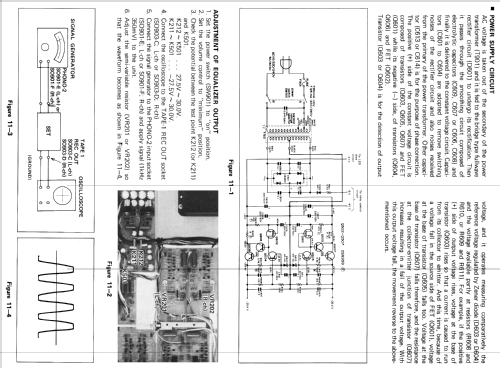

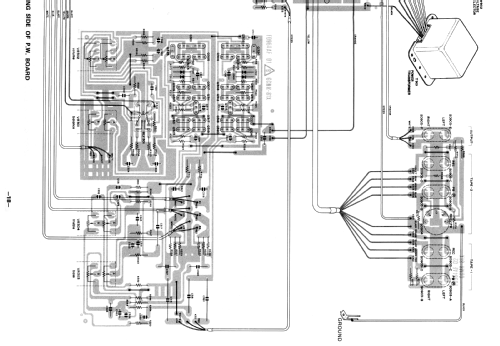

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Optonica SO-9100H - Sharp; Osaka
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 430 x 75 x 382 mm / 16.9 x 3 x 15 inch
- Notes
- Stereo-Vorverstärker.
Gehäuseausführung Silbermetallic.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
