PSB/AM/FM FY-308U
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 256422
-
- alternative name: Hayakawa Electric Co.Ltd.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Batteries (any type) / 120 / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: PSB/AM/FM FY-308U - Sharp; Osaka
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-

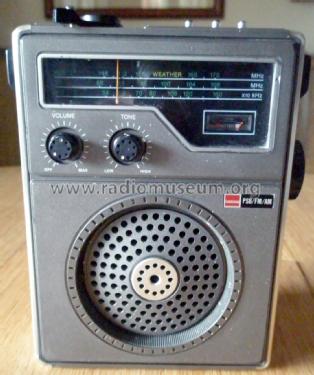

Sharp Portable 3 Band Transistor Radio Model FY-308U.

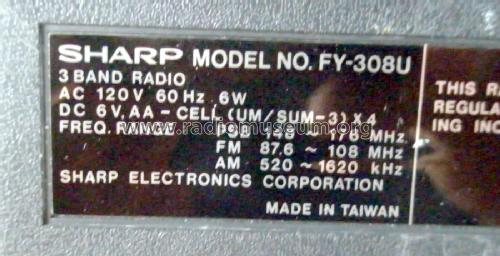

Frequency Range: FM 87,6 - 108 MHz, AM 520 - 1620 kHz, PSB 148 - 176 MHz
Telescopic antenna. Earphone Jack
Loudness, AFC
Power Consumption 6 Watts.
Made in Taiwan.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
