• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1975 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 219576

• • alternative name: Hayakawa Electric Co.Ltd.

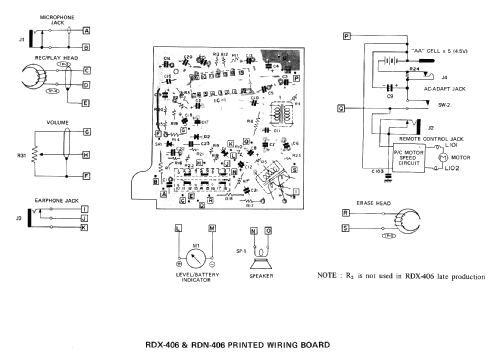

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Recorder RDX 406 Ch= RD 406 - Sharp; Osaka

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 175 x 105 x 45 mm / 6.9 x 4.1 x 1.8 inch

• Notes
• Recorder RDX 406, 2 Spur Mono, Externes Netzteil AC 110 bis 240 Volt 50/60 Hz anschließbar.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Mentioned in
• -- Original-techn. papers. (Original Sharp Service Unterlagen)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
