• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1983 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128140

• • alternative name: Hayakawa Electric Co.Ltd.

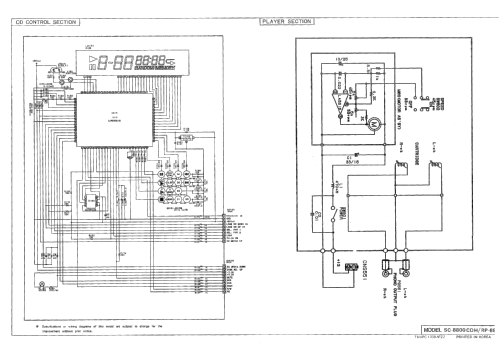

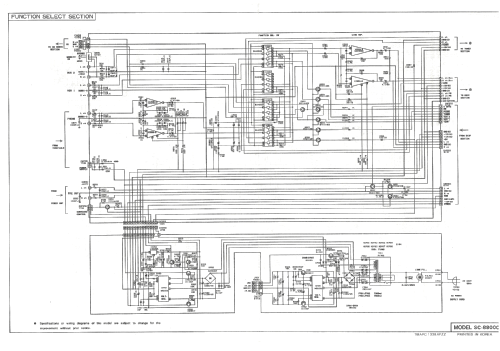

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 800 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: SC8800-CDH - Sharp; Osaka

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 1000 x 500 x 420 mm / 39.4 x 19.7 x 16.5 inch

• Notes
• Equipo de sonido HI FI Stereo. Reproducto de carro para cinco CD. Doble departamento para grabacion/reproducion de cinta de cassett. Sintonizador AM FM Stereo. Tocadiscos automatico. Etapa de potencia de 2 x 400W. Mando distancia.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
