• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1978/1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84039

• • alternative name: Hayakawa Electric Co.Ltd.

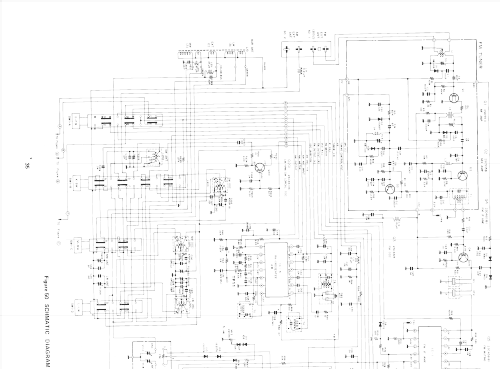

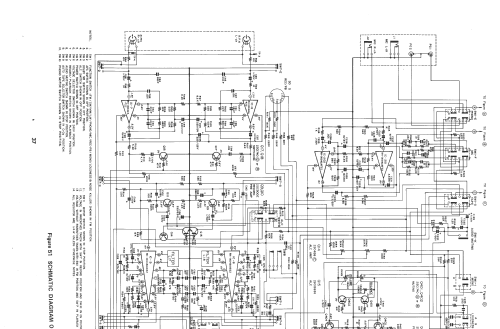

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 28

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

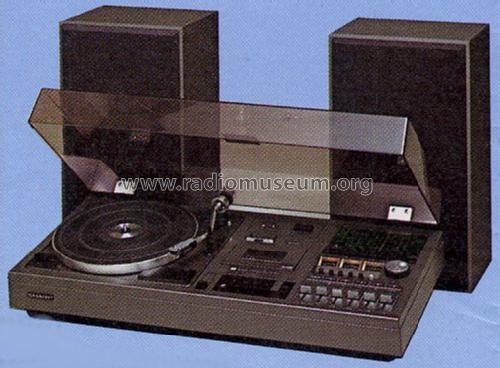

• Model: SG-400H Stereo - Sharp; Osaka

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 753 x 180 x 351 mm / 29.6 x 7.1 x 13.8 inch

• Notes
• ICs: 12; Dioden: 41; LED: 9. Automatic Plattenspieler kein Wechsler. + Kassettendeck.

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• Literature/Schematics (1)
• -- Original-techn. papers. ((A) Kapsch Geräteprogramm 1978/79 mit Sharp Importgeräteteil)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
