Solid State Auto Radio ATR-931
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 221415
-
- alternative name: Hayakawa Electric Co.Ltd.
Bild aus Sharp Service Unterlagen

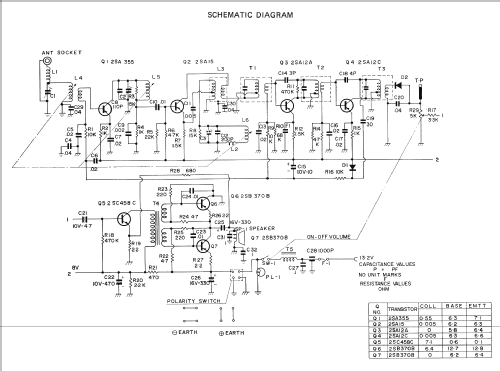

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Valves / Tubes
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Solid State Auto Radio ATR-931 - Sharp; Osaka
- Shape
- Chassis only or for «building in»
- Notes
- Auto Radio nur MW
- Mentioned in
- Sharp Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
