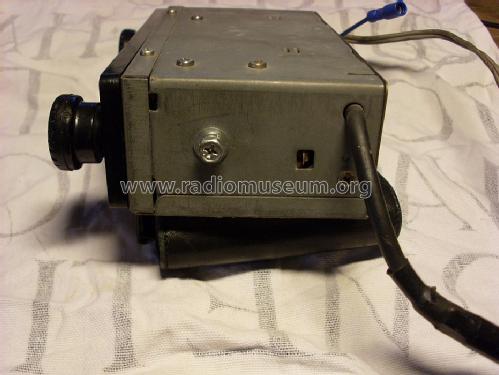

Solid State Auto Radio ATR-933A
Sharp; Osaka
- Country
- Japan
- Manufacturer / Brand
- Sharp; Osaka
- Year
- 1970 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 221443
-
- alternative name: Hayakawa Electric Co.Ltd.
Bild aus Sharp Service Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 452 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Solid State Auto Radio ATR-933A - Sharp; Osaka
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 160 x 49 x 92 mm / 6.3 x 1.9 x 3.6 inch
- Notes
- Auto Radio nur Mittel- und Langwelle.
- Net weight (2.2 lb = 1 kg)
- 0.750 kg / 1 lb 10.4 oz (1.652 lb)
- Mentioned in
- Sharp Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
