• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1979 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351279

• • alternative name: Hayakawa Electric Co.Ltd.

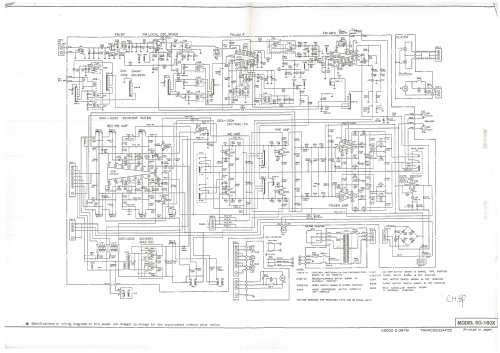

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 50-60Hz, 110; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo Music Centre SG-160X - Sharp; Osaka

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 558 x 163 x 373 mm / 22 x 6.4 x 14.7 inch

• Notes

• Stereo Music Centre with AM/FM/SW1/SW2 radio, 2-speed rim driven turntable and cassette recorder.

  Frequency Range:
  AM 520 ~ 1620 kHz
  FM 87.6 ~ 108 MHz
  SW1 2.3 ~ 7.3 MHz
  SW2 7.3 ~ 22 MHz

  See also Model SG-160H with Long Wave.

• Net weight (2.2 lb = 1 kg)
• 7.1 kg / 15 lb 10.2 oz (15.639 lb)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
