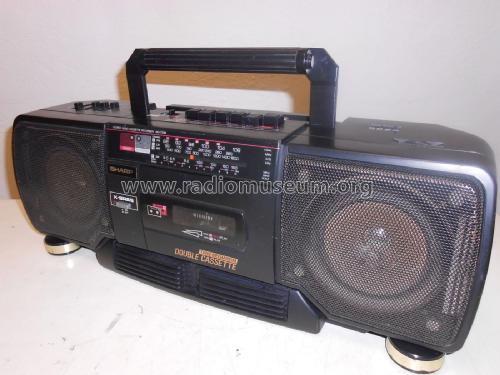

Stereo Radio Cassette Recorder WQ-T238H(BK)

Sharp; Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1990 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 307528
    • alternative name: Hayakawa Electric Co.Ltd.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 120; 220; 240 / D: 8 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Radio Cassette Recorder WQ-T238H - Sharp; Osaka
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 530 x 190 x 170 mm / 20.9 x 7.5 x 6.7 inch
  • Notes

  • controllo volume - equalizzatore grafico a 3 bande (100 Hz-1 kHz-8 kHz) - commutatore FM mono/stereo - presa per cuffia - commutatore tape 1/2(playback)-normal/CrO2 - commutatore function: tape/radio/cd/line in - presa mix mic/ line in - tape mode: cont: 1/2 - 1- 2 - dubbing - tasti play/pause/stop/eject/ffwd/rewind/record - Tape1 Play, Tape2 Record & Play - commutaore band selector SW/MW/LW/FM - led power on- Led FM Stereo - X-Bass on/off - Twin mechanism double cassette - antenna telescopica esterna - maniglia di trasporto - frequency range: FM 87.5/108 MHz - MW 526,5/1606,5 kHz - SW 5,95/18 MHz - LW 148,5/283,5 kHz - consumo 28 watt.

    Made in Malaysia.

  • Net weight (2.2 lb = 1 kg)
  • 4.6 kg / 10 lb 2.1 oz (10.132 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
