Transistor Six TR-182

• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107940

• • alternative name: Hayakawa Electric Co.Ltd.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• HJ23D or. 2S52 HJ22D or. 2S45 HJ22D or. 2S53 HJ15 or. 2S54 HJ17 or. 2S56 HJ17 or. 2S56 1N34A or. 1N60

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Transistor Six TR-182 - Sharp; Osaka

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 4.455 x 2.585 x 1.475 inch / 113 x 66 x 37 mm

• Notes

• Sharp TR-182

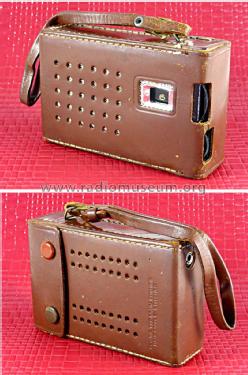

  Six-transistor battery operated B/C portable with 2¼" PM dynamic speaker. Supplied complete with leather carrying belt and bag, also one earphone, in decorated box. Plastic cabinet. Takes Eveready Type 216 (9V) battery.

  Can be docked with Sharp CP236 Home Amplifier

  See also: Continental Transistor Six TR-182
