• Country
• Japan

• Manufacturer / Brand
• Sharp; Osaka

• Year
• 1968

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 205451

• • alternative name: Hayakawa Electric Co.Ltd.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver; ZF/IF 455 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 12; 8 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Material
• Metal case

• from Radiomuseum.org

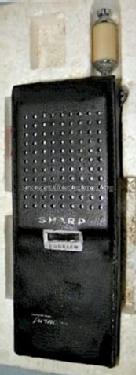

• Model: Twincomm DX CBT-66 - Sharp; Osaka

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 73 x 198 x 44 mm / 2.9 x 7.8 x 1.7 inch

• Notes

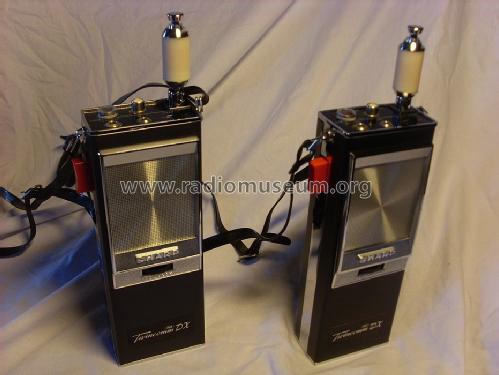

• Sharp Twincomm DX CBT-66 Transceiver Solid State;
  27 MHz, AM, two channels, jacks for charger, earphones & ext. antenna. Made in Japan.

  FTZ-Nr. K-71/68

• Net weight (2.2 lb = 1 kg)
• 0.840 kg / 1 lb 13.6 oz (1.85 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
