VAL 极典 R-801

Shenzhen VAL 深圳极典科技有限公司 Shenzhen VAL Technology Co. Ltd,; Shenzhen

Data
Forum
Pictures
Collections

  • Year
  • 2010
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 175003

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet with RF-stage; ZF/IF 465 kHz
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • 4 Loudspeakers / Ø 20 cm = 7.9 inch
  • Power out
  • 40 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: VAL 极典 R-801 - Shenzhen VAL 深圳极典科技有限...
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 620 x 405 x 260 mm / 24.4 x 15.9 x 10.2 inch
  • Notes
  • The model VAL R-801 or 极典 R-801 is a special hybride Hi-Fi radio with IC based receivving and a Hi-Fi class stereo tube amplifier powered by four 6P3P which is compatible with EL34.

    Receiving Bands: AM broadcast: 530-1610 kc (kHz), SW1 4.5 - 12 mc (MHz), SW2 12 - 22 mc, FM 87 - 108 mc.
    S/N Ratio: FM>50dB AM>40dB; Sensitivity: FM≤3uv AM≤1mv; FM Stereo separation: ≥ 35dB; Distortion : FM 0.5% AM 1%; One Signal Selectivity: ≥30dB.
    Tube amplifier: RMS power:≥ 2×25W; Frequency Response:30Hz-20KHz.
    System Frequency Response: AM/SW: 60Hz-8KHz (+3/-5dB); FM: 60Hz-15KHz (+3/-5dB); AUX IN: 60Hz-20KHz.
  • Net weight (2.2 lb = 1 kg)
  • 29 kg / 63 lb 14 oz (63.877 lb)
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model VAL 极典 is part of the collections of the following members.

 Forum

Forum contributions about this model: Shenzhen VAL 深圳极...: VAL 极典 R-801

Threads: 1 | Posts: 1

When I was attending the welcome party in Guangzhou for me on 2nd April 2010, I was faszinated by this radio model VAL 极典 R-801 of the Shenzhen VAL Technology Co. Ltd. in Shenzhen.

The "VAL" is a smaller radio manufacturer which sells also some special retro radios - and others.

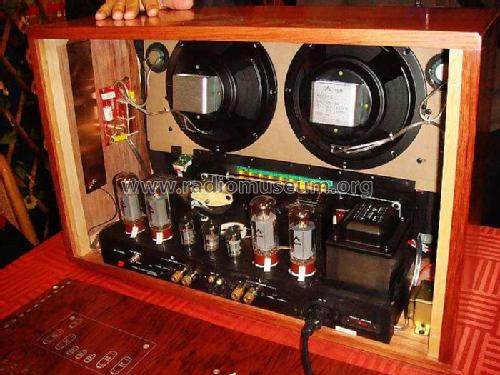

Why my special interest? It sounded so good that I had to have a closed look. The main advantage is indeed the sound which is excellent. I heard that the company developped 6 years on it and is hoping to bring it to the market this year. At the moment it has 4 dynamic speakers and the audio frequency stages are fully realized with (8!) tubes. The power is necessary because modern loudspeakers have much loss if they are giving a top quality sound.

The company intends to sell the radio abroad. Maybe we then can try to get a xpecial arrangement to order it together to achieve a certain quantity. What i critisized is the two gang variable condenser for AM - but the company did not find any three gang tuning condenser and hand made would be far too expensive. They want to try to get some improvement in this area.

I don't know the market for tuning condensers - but if somebody has a source I would be glad to inform the company. You can reach me via contact form (see bottom link "Contact").





Ernst Erb, 25.May.10
