FM-MX Stereo Tuner S-3000 IV
Sherwood, Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sherwood, Chicago
- Year
- 1965 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 196854

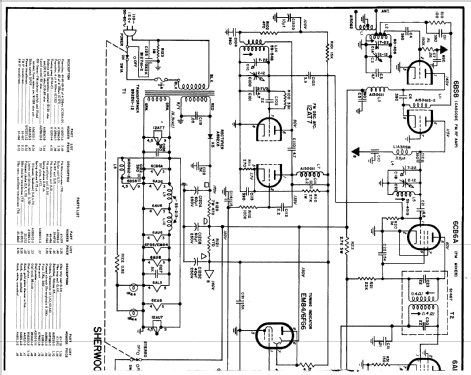

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 10700 kHz
- Tuned circuits
- 12 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110-125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: FM-MX Stereo Tuner S-3000 IV - Sherwood, Chicago
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 110 x 370 x 250 mm / 4.3 x 14.6 x 9.8 inch
- Notes
- Matching Amplifier: Sherwood S-5500 II.
- Price in first year of sale
- 164.00 $
- Author
- Model page created by Bo Soerensen. See "Data change" for further contributors.
