FM-MX Tuner S-3000 V (5)

Sherwood, Chicago

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 154068

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Alternating Current supply (AC) / 115-125 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM-MX Tuner S-3000 V - Sherwood, Chicago
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 14 x 4 x 11 inch / 356 x 102 x 279 mm
  • Notes
  • FM Stereo Tuner.
  • Net weight (2.2 lb = 1 kg)
  • 7 kg / 15 lb 6.7 oz (15.419 lb)

 Collections | Museums | Literature

Collections

The model FM-MX Tuner S-3000 V (5) is part of the collections of the following members.

 Forum

Forum contributions about this model: Sherwood, Chicago: FM-MX Tuner S-3000 V

Threads: 1 | Posts: 4

I have a Sherwood FM tuner s-3000V with the MPX in the unit with a copper plate and adjustments,   I have had this for over 10 years.   I did a upgrade on the electrolytic caps that was in a can  60,60,40,10 was the microfarads.   I removed it and replaced them with axial caps and when I was done and I listened to it the sound was much more open, it sounded great.    Over time I wanted to get it aligned so I sent it to someone to aligne it.  Well I got it back and it was clear but the open sound stage was gone as he removed my caps and put a can back in.    Now fast forward to today and I decided to replace the caps again to get that great sound and when I was looking at the unit I found that the person had replaced the

60,60,40,10 with a 40,40,20, can cap and tied in a 68 microfarad cap with the 20 microfarad.  He tied two circuits into one.  I change the caps back to origninal specs and now I cannot tune in any stations, its like nothing is out there.



MY question is was the fm alignment messed up when I replaced the caps back to spec.   I do not do alligments but suspect that this is the case and now I should  either look for someone to align the tuner or buy new caps and put it back to the way it was  but with better caps.

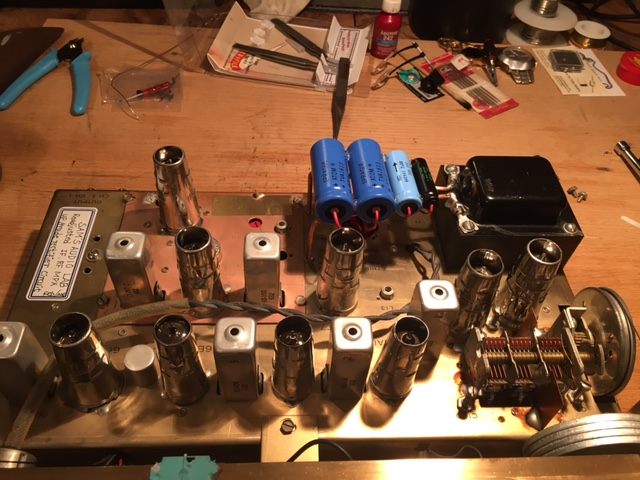

I have included a pic of the tuner with my upgrade.

Any feedback would be greatly appreciated.

Regards

Joseph

--------

Picture included by Dietmar Rudolph

Attachments

Joseph Christilles, 24.Aug.21
