S-1000
Sherwood, Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sherwood, Chicago
- Year
- 1957 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 239085

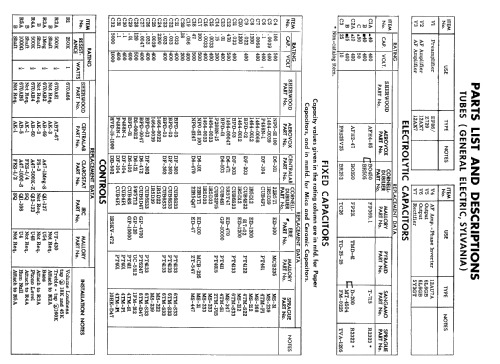

picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 20 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: S-1000 - Sherwood, Chicago
- Shape
- Book-shelf unit.
- Notes
-
Integrated mono amplifier. Preamp equalizer curves: LP, LONdon, EURopean, AES, RIAA.
The Sherwood S1000 amplifier was revised multiple times, including different positioning of tubes, different tube line-ups etc.
We show the original configuration as per the SAMS Photofacts folder.
There is a potential source of confusion between the different revisions of the S-1000 (Mk. II, Mk. III) and the S-1000-II, which is a 9-tube amplifier.
- Mentioned in

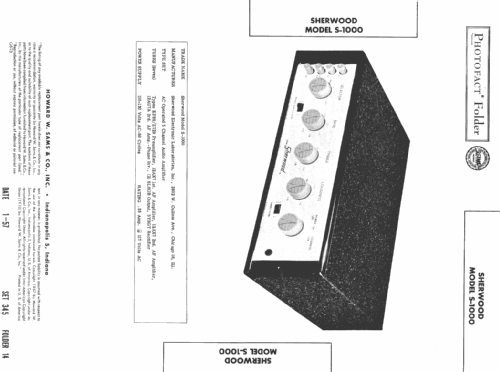

- Photofact Folder, Howard W. SAMS (Date 1/57, Set 345, Folder 14)
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
