• Country
• United States of America (USA)

• Manufacturer / Brand
• Sherwood, Chicago

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127830

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6BS8 6GH8 6AU6 6BA6 6BE6 6BA6 6BN6 6GH8 6GH8 12AT7 12AU7 6EU7 6EU7 6EU7 6EU7 6EU7 6EU7 7868 7868 7868 7868

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

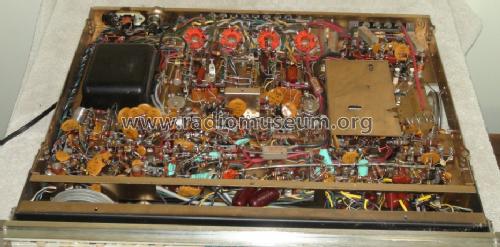

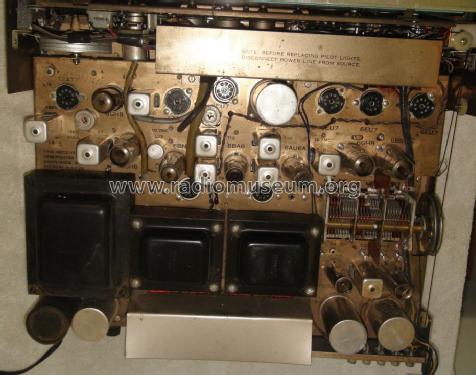

• Model: FM-Stereo-AM Receiver S-7700 III - Sherwood, Chicago

• Shape
• Chassis only or for «building in»

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Walter Groer. See "Data change" for further contributors.
